ZEISS DotScan
자유 곡면 캡처를 위한 광학 센서
크로마틱 백색광 센서를 사용하면 측정물 표면 형상을 비접촉식으로 캡처할 수 있습니다. 일반적으로 민감하거나 반사성이거나 명암비가 낮은 표면으로 인해 다른 광학 센서를 사용하기 어려운 경우에 사용됩니다.
특징

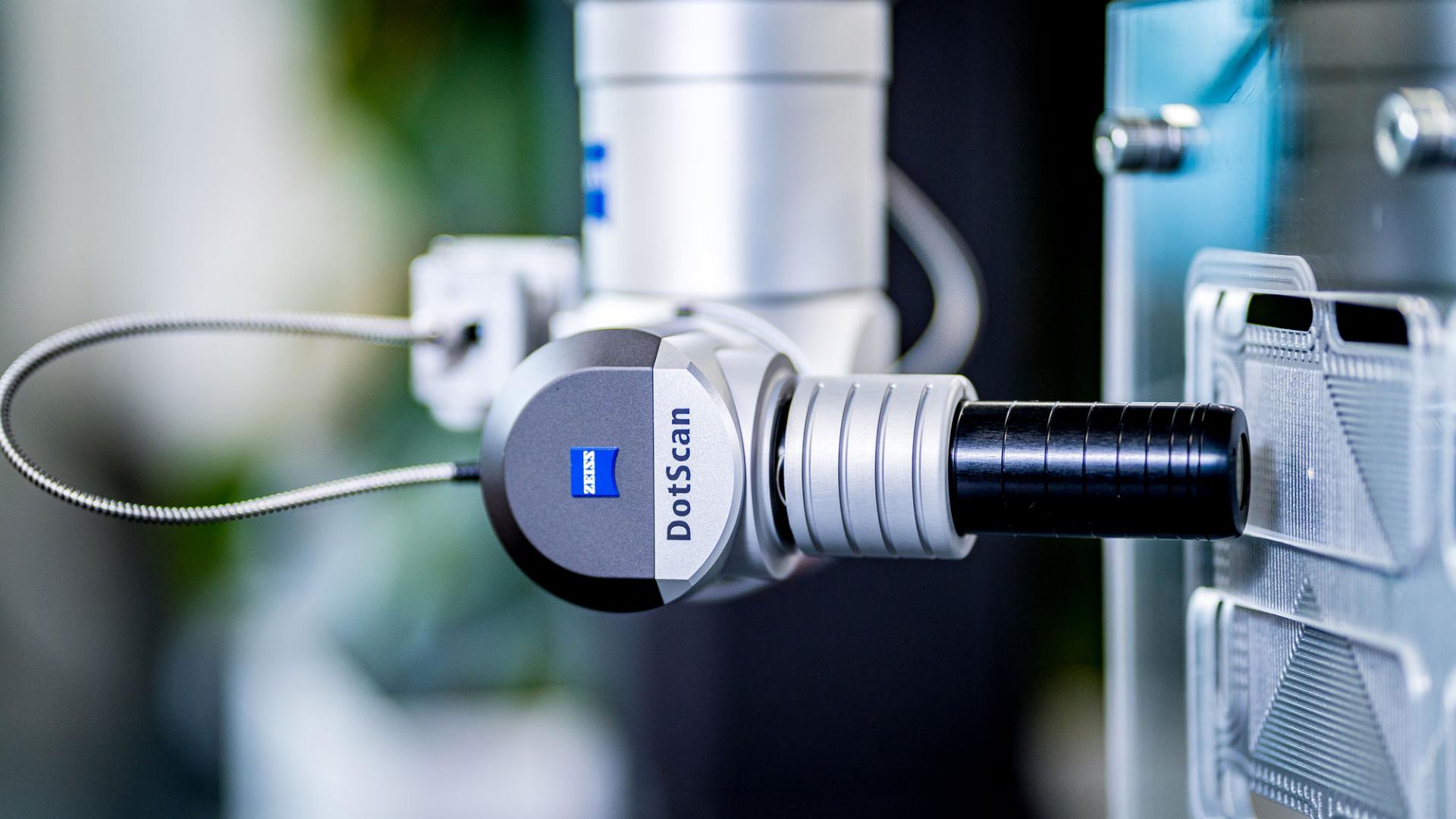

![ZEISS DotScan: 자유 곡면 캡처를 위한 광학 센서]({"xsmall":"https://www.zeiss.co.kr/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.100.56.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","small":"https://www.zeiss.co.kr/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.360.203.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","medium":"https://www.zeiss.co.kr/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.768.432.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","large":"https://www.zeiss.co.kr/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.1024.576.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","xlarge":"https://www.zeiss.co.kr/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.1280.720.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","xxlarge":"https://www.zeiss.co.kr/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.1440.810.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","max":"https://www.zeiss.co.kr/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.1920.1080.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg"} "ZEISS DotScan: 자유 곡면 캡처를 위한 광학 센서")
ZEISS DotScan은 자유 곡면과 미세 구조물까지 캡처하는 데 탁월한 옵션입니다. 특히 스타일러스나 카메라 센서가 민감하고 부드럽거나 반사성이거나 명암비가 낮은 표면에서 한계에 도달할 때 크로마틱 백색광 센서, 즉 ZEISS DotScan은 적합한 선택입니다.
ZEISS DotScan을 사용하면 무릎 임플란트의 금속 부품과 같이 심한 반사성 표면도 조영제를 주입하지 않고 스캔할 수 있습니다. 또한 투명 페인트가 칠해진 표면을 그 아래의 다른 금속 레이어와 구별할 수 있습니다.

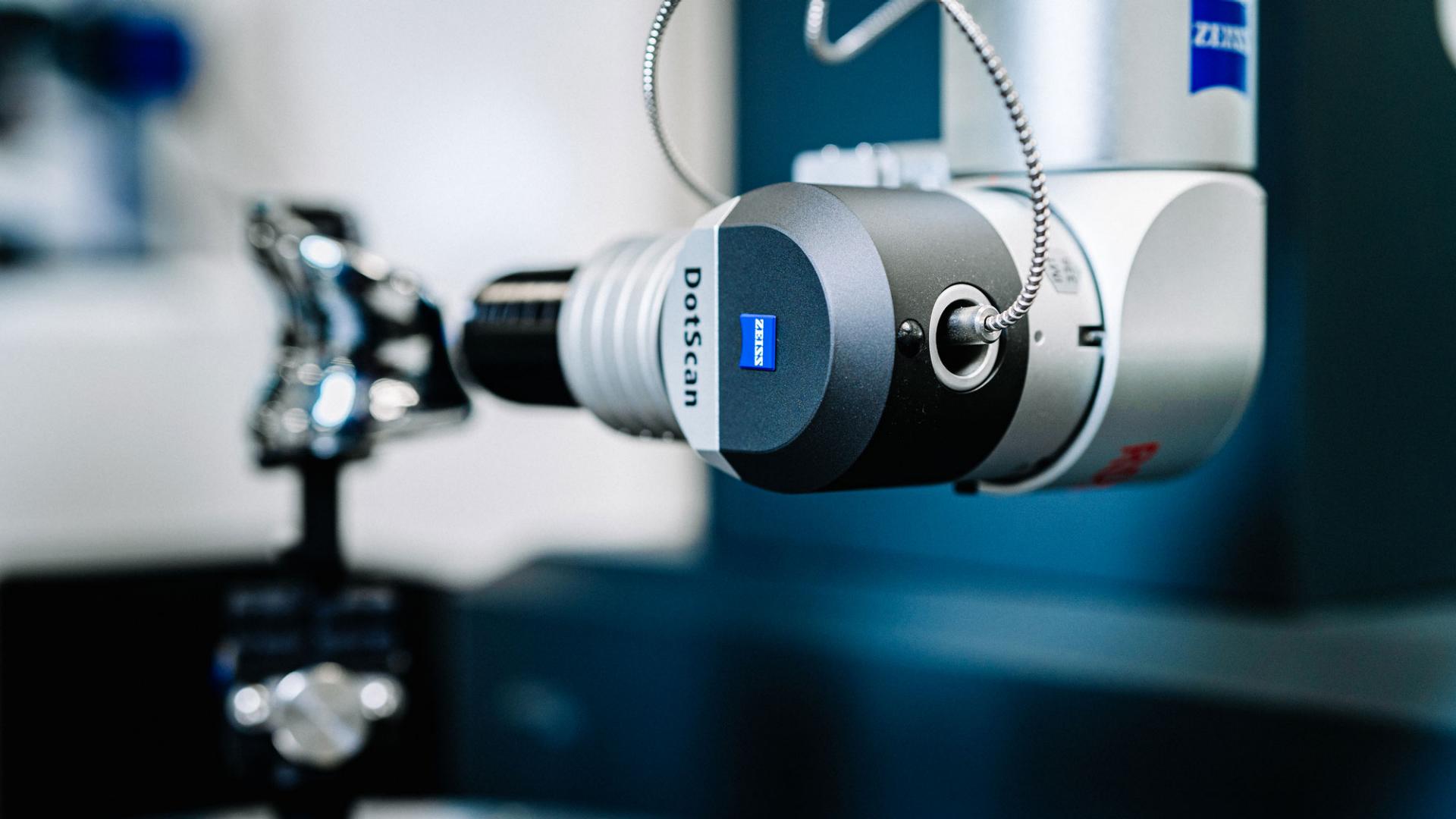

![ZEISS DotScan: 자유 곡면 캡처를 위한 광학 센서]({"xsmall":"https://www.zeiss.co.kr/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.100.56.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","small":"https://www.zeiss.co.kr/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.360.203.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","medium":"https://www.zeiss.co.kr/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.768.432.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","large":"https://www.zeiss.co.kr/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.1024.576.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","xlarge":"https://www.zeiss.co.kr/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.1280.720.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","xxlarge":"https://www.zeiss.co.kr/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.1440.810.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","max":"https://www.zeiss.co.kr/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.1920.1080.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg"} "ZEISS DotScan: 자유 곡면 캡처를 위한 광학 센서")
유연한 사용
ZEISS DotScan은 세 가지 측정 범위에 따라 세 가지 크기로 제공됩니다: 10, 3 및 1mm. 센서는 한 번의 CNC 실행으로 다른 접촉식 또는 광학 센서로 완전 자동으로 교체할 수 있습니다. 2.5도 단위로 관절 축을 조정하여 스캔하는 부품의 표면과 수직이 되도록 ZEISS DotScan을 정렬할 수 있습니다.
또한 ZEISS DotScan 1mm의 최대 측정 각도는 +/- 30도이므로 훨씬 더욱 심한 곡선형 부품도 스캔할 수 있습니다. 센서의 작동 모드 덕분에 다양한 재료를 모든 면에서 어려움 없이 스캔할 수 있습니다. 로터리 테이블과 함께 사용하면 4축 스캔으로 측정 작업도 수행할 수 있습니다.
