ZEISS의 Diamond!Scan®
가장 단단한 재질로 제작
ZEISS Diamond!Scan 스타일러스는 초경질 세라믹 표면이나 매우 연한 알루미늄 합금에서의 측정을 위해 특별히 개발되었습니다. 해당 스타일러스는 가장 단단한 재질인 다이아몬드로 제작되었습니다.
특징
ZEISS Diamond!Scan
제품 소개
![]({"xsmall":"https://www.zeiss.co.kr/content/dam/iqs/r/services/accessories/cmm/diamondscan/solid-diamond-scan.jpg/_jcr_content/renditions/original.image_file.100.67.1,0,1920,1279.file/solid-diamond-scan.jpg","small":"https://www.zeiss.co.kr/content/dam/iqs/r/services/accessories/cmm/diamondscan/solid-diamond-scan.jpg/_jcr_content/renditions/original.image_file.360.240.1,0,1920,1279.file/solid-diamond-scan.jpg","medium":"https://www.zeiss.co.kr/content/dam/iqs/r/services/accessories/cmm/diamondscan/solid-diamond-scan.jpg/_jcr_content/renditions/original.image_file.768.512.1,0,1920,1279.file/solid-diamond-scan.jpg","large":"https://www.zeiss.co.kr/content/dam/iqs/r/services/accessories/cmm/diamondscan/solid-diamond-scan.jpg/_jcr_content/renditions/original.image_file.1024.683.1,0,1920,1279.file/solid-diamond-scan.jpg","xlarge":"https://www.zeiss.co.kr/content/dam/iqs/r/services/accessories/cmm/diamondscan/solid-diamond-scan.jpg/_jcr_content/renditions/original.image_file.1280.853.1,0,1920,1279.file/solid-diamond-scan.jpg","xxlarge":"https://www.zeiss.co.kr/content/dam/iqs/r/services/accessories/cmm/diamondscan/solid-diamond-scan.jpg/_jcr_content/renditions/original.image_file.1440.960.1,0,1920,1279.file/solid-diamond-scan.jpg","max":"https://www.zeiss.co.kr/content/dam/iqs/r/services/accessories/cmm/diamondscan/solid-diamond-scan.jpg/_jcr_content/renditions/original.image_file.1919.1279.1,0,1920,1279.file/solid-diamond-scan.jpg"})

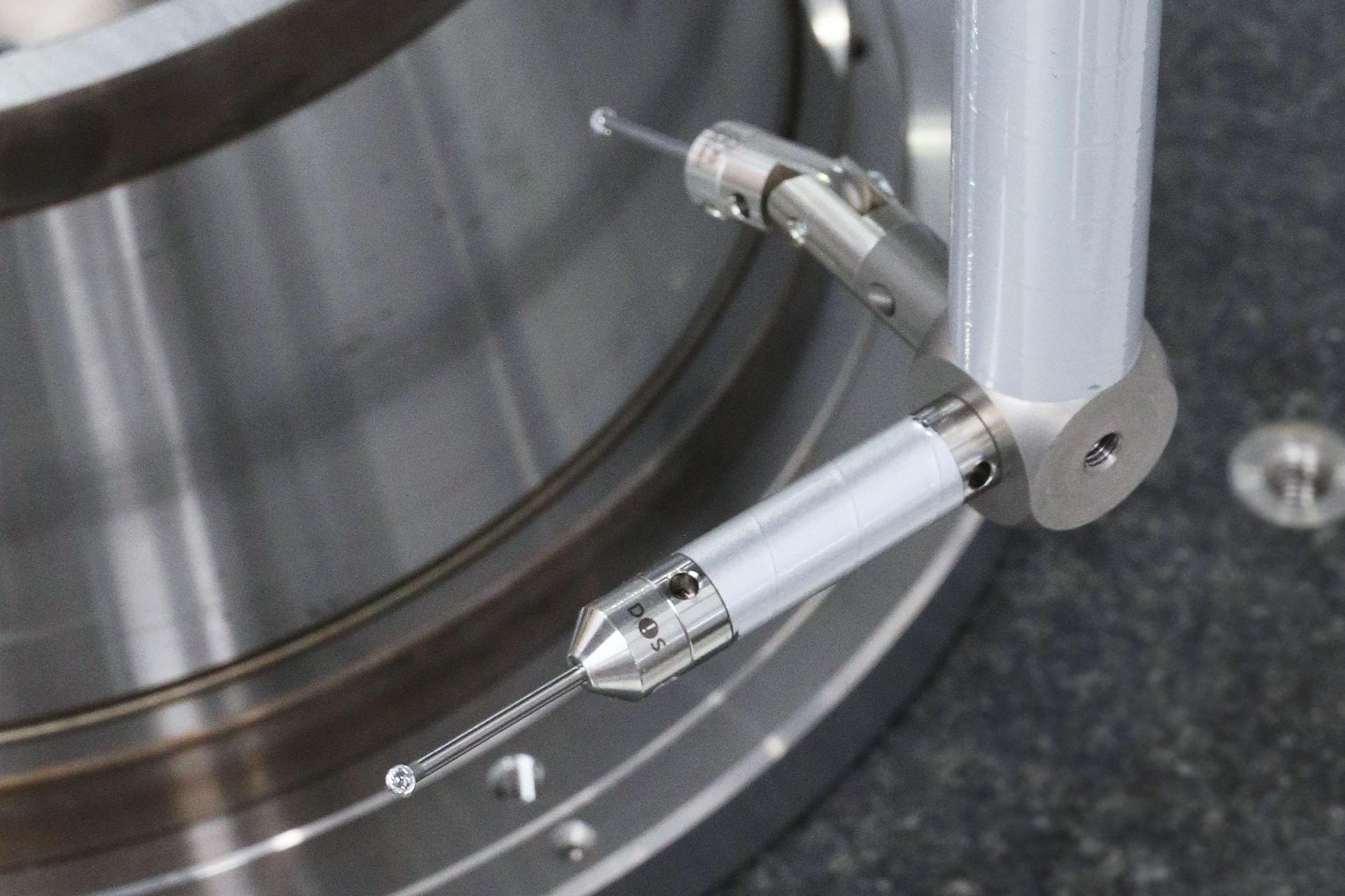

고체형 다이아몬드
복잡한 측정 작업에 대해서
ZEISS Diamond!Scan은 고체형 다이아몬드 재질로 만들어진 스타일러스입니다. 해당 구 형상은 내구성이 강하여 쉽게 마모되지 않습니다. 포인트 밀도가 높은 싱글 포인트 프로빙에 다음의 다이아몬드형 스타일러스를 사용하는 것이 좋습니다. 결론: ZEISS 다이아몬드형 스타일러스 사용을 적극 권장합니다. 이 스타일러스는 DK 1, DK 2, DK 3 직경으로 제공됩니다.
![]({"xsmall":"https://www.zeiss.co.kr/content/dam/iqs/r/services/accessories/cmm/diamondscan/diamond-coated-stylus.jpg/_jcr_content/renditions/original.image_file.100.67.file/diamond-coated-stylus.jpg","small":"https://www.zeiss.co.kr/content/dam/iqs/r/services/accessories/cmm/diamondscan/diamond-coated-stylus.jpg/_jcr_content/renditions/original.image_file.360.240.file/diamond-coated-stylus.jpg","medium":"https://www.zeiss.co.kr/content/dam/iqs/r/services/accessories/cmm/diamondscan/diamond-coated-stylus.jpg/_jcr_content/renditions/original.image_file.768.512.file/diamond-coated-stylus.jpg","large":"https://www.zeiss.co.kr/content/dam/iqs/r/services/accessories/cmm/diamondscan/diamond-coated-stylus.jpg/_jcr_content/renditions/original.image_file.1024.683.file/diamond-coated-stylus.jpg","xlarge":"https://www.zeiss.co.kr/content/dam/iqs/r/services/accessories/cmm/diamondscan/diamond-coated-stylus.jpg/_jcr_content/renditions/original.image_file.1280.853.file/diamond-coated-stylus.jpg","xxlarge":"https://www.zeiss.co.kr/content/dam/iqs/r/services/accessories/cmm/diamondscan/diamond-coated-stylus.jpg/_jcr_content/renditions/original.image_file.1440.960.file/diamond-coated-stylus.jpg","max":"https://www.zeiss.co.kr/content/dam/iqs/r/services/accessories/cmm/diamondscan/diamond-coated-stylus.jpg/_jcr_content/renditions/original./diamond-coated-stylus.jpg"})

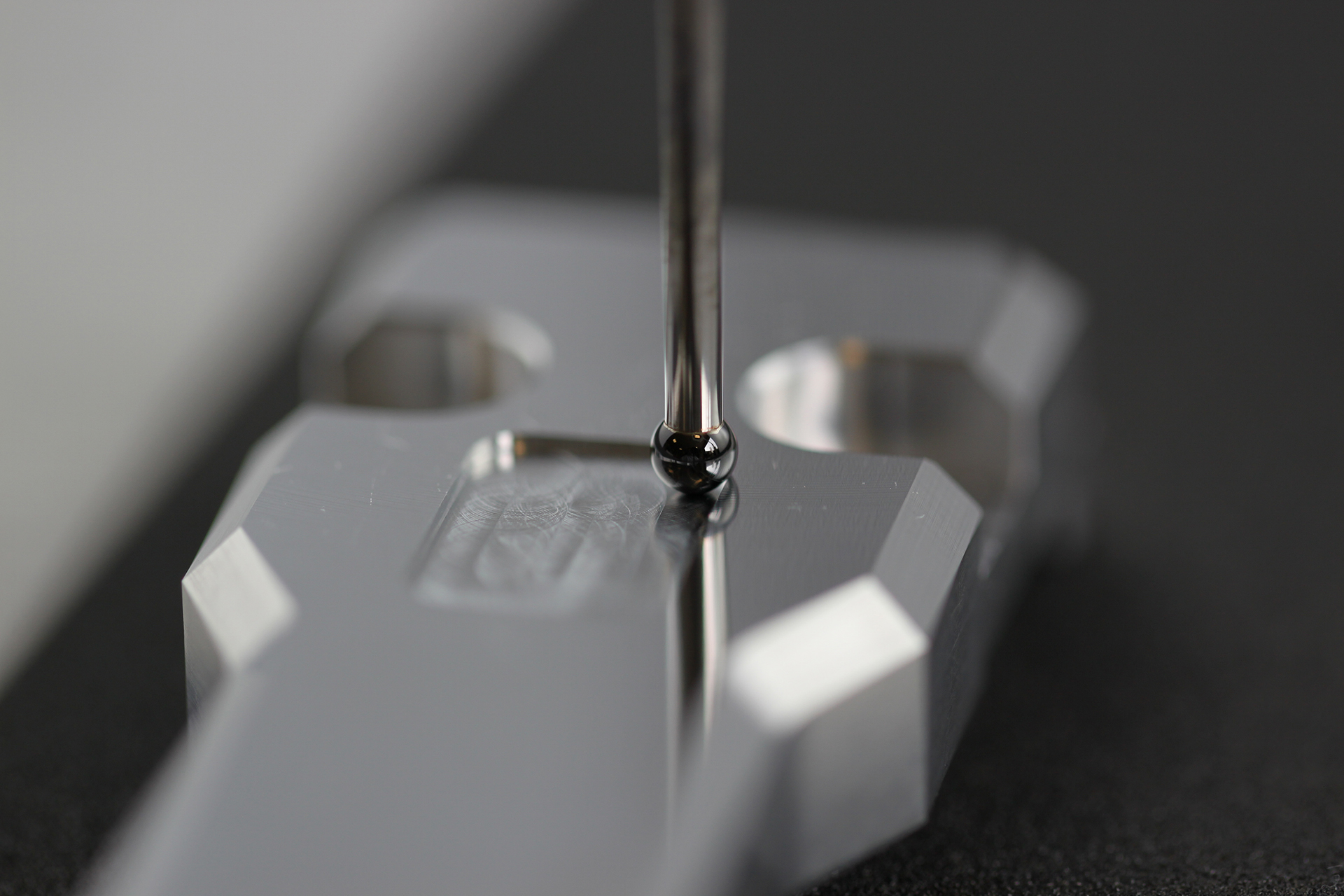

다이아몬드 코팅된 스타일러스
재질이 잘 부착되지 않는 측정
다이아몬드 코팅된 스타일러스는 다이아몬드 코팅된 세라믹 구의 구성 요소입니다. 이러한 스타일러스는 연한 재질의 스캐닝에 특히 적절합니다. 측정물의 재질이 구에 달라붙지 않습니다. 또 다른 장점은 코팅된 스타일러스의 진원도가 150nm 미만으로, 상당히 낮은 가격 대비 정밀도가 높다는 점입니다. 이 스타일러스는 DK 1.05, DK 2.05, DK 3.05, DK 5.05, DK 8.05 직경으로 제공됩니다.
![]({"xsmall":"https://www.zeiss.co.kr/content/dam/iqs/r/services/accessories/cmm/diamondscan/monolithic-stylus.jpg/_jcr_content/renditions/original.image_file.100.67.file/monolithic-stylus.jpg","small":"https://www.zeiss.co.kr/content/dam/iqs/r/services/accessories/cmm/diamondscan/monolithic-stylus.jpg/_jcr_content/renditions/original.image_file.360.240.file/monolithic-stylus.jpg","medium":"https://www.zeiss.co.kr/content/dam/iqs/r/services/accessories/cmm/diamondscan/monolithic-stylus.jpg/_jcr_content/renditions/original.image_file.768.512.file/monolithic-stylus.jpg","large":"https://www.zeiss.co.kr/content/dam/iqs/r/services/accessories/cmm/diamondscan/monolithic-stylus.jpg/_jcr_content/renditions/original.image_file.1024.683.file/monolithic-stylus.jpg","xlarge":"https://www.zeiss.co.kr/content/dam/iqs/r/services/accessories/cmm/diamondscan/monolithic-stylus.jpg/_jcr_content/renditions/original.image_file.1280.853.file/monolithic-stylus.jpg","xxlarge":"https://www.zeiss.co.kr/content/dam/iqs/r/services/accessories/cmm/diamondscan/monolithic-stylus.jpg/_jcr_content/renditions/original.image_file.1440.960.file/monolithic-stylus.jpg","max":"https://www.zeiss.co.kr/content/dam/iqs/r/services/accessories/cmm/diamondscan/monolithic-stylus.jpg/_jcr_content/renditions/original./monolithic-stylus.jpg"})

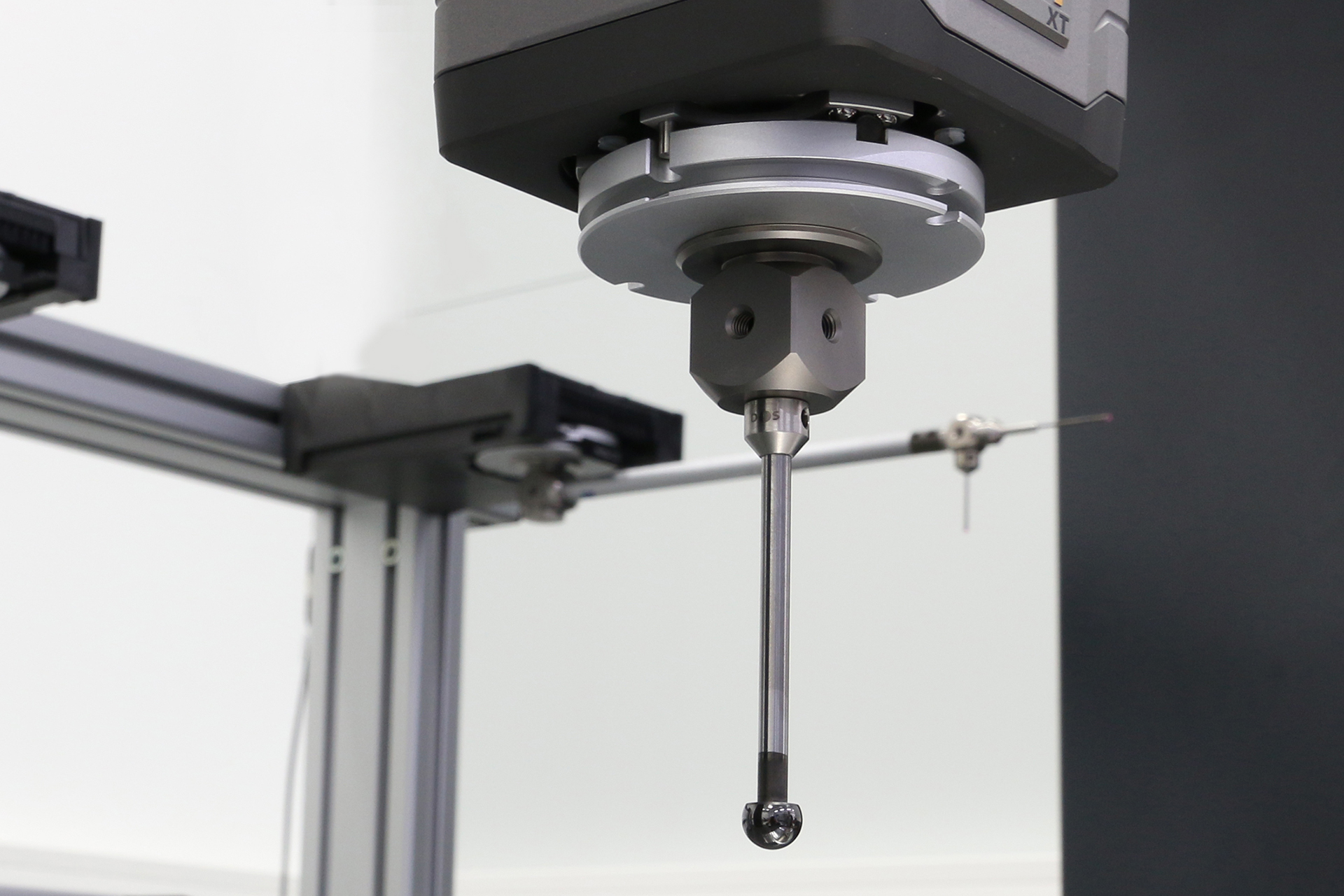

일체형 스타일러스
다이아몬드 코팅 구성의 일체형 스타일러스
ZEISS Diamond!Scan mono는 다이아몬드 코팅된 일체형 스타일러스입니다. 즉 구와 스타일러스가 일체형으로 제작되었습니다. 이 솔루션에는 몇 가지 장점이 있습니다: 모든 직경과 기술적으로 가능한 모든 길이로 제작할 수 있습니다. 그밖에, 스타일러스가 일체형으로 제작되었으므로 구가 분리되어 떨어질 가능성이 적습니다.
고체형 다이아몬드 또는 다이아몬드 코팅 타입 중 어떤 스타일러스를 선택하시겠습니까?
선택은 개별 측정 작업에 따라 달라집니다. 각각의 스타일러스는 개별적 특성을 갖고 있습니다.
